MJOPTC MJ8802 360 panoramic camera lens for 1/2.8″ EFL1.3 F2.1

Short Description:

1.360 panoramic camera lens MJ8802

2.3MP focal length:1.3 F/NO.:2.1 TTL:14.4 FOV:200° Size:1/2.8”,1/2.9”,1/3”,1/3.2”,1/3.6”,1/4”


Product Detail

Product Tags

Application

Applicable to: CCTV LENS car driving recorder reversing image access control system smart home car lend panoramic 360 degree panoramic 360 camera

Serial number

Item

Value

1

EFL

1.3

2

F/NO.

2.1

3

FOV

200°

4

TTL

14.4

5

Sensor Size

1/2.8”,1/2.9”,1/3”,1/3.2”,1/3.6”,1/4”

dqwqfqwfwq
veer-308210187

Description

Panoramic lens series, super wide-angle 210 degrees, car 360-degree panoramic surround, to achieve high-definition 3M-8M pixels. Leading in-vehicle high-definition picture quality, to achieve safe driving without dead ends. We have all the specifications you want. Email consultation is welcome, thank you very much!

Applied field

Smart home products, such as security monitoring, APP Wifi cameras, IP cameras, smart digital access control, video doorbells, sweeping robots, lawn mowers, refrigerators, air conditioners, etc.; digital products, such as sports DV, aerial photography, panoramic cameras, law enforcement recorders , AR/VR, etc.

abdds
agag

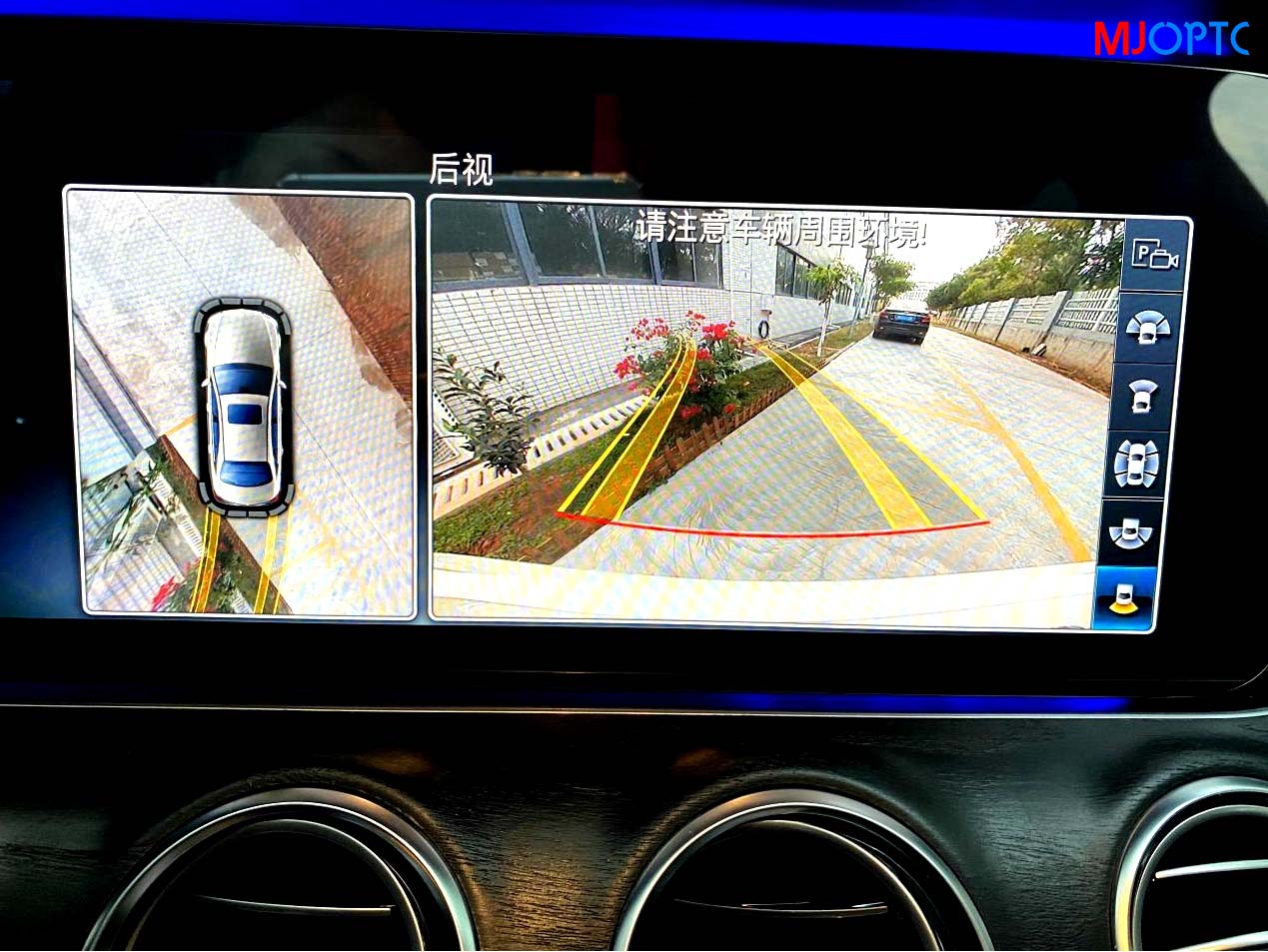

What is a car panoramic image system ?

Vehicle-mounted cameras play an important role in realizing ADAS and autonomous driving, and automotive panoramic imaging systems composed of vehicle-mounted cameras can greatly improve the safety and convenience of driving. Panoramic imaging system can also be called 360°panoramic imaging system in Chinese, or MVCS (MulTI-View Camera System) for short. The panoramic surround view system provides car drivers with more intuitive driving assistance image information, which can quickly and accurately find situations that are difficult to observe near the vehicle, and achieve precise driving control, especially for novice drivers, which can improve driving safety and Reduce unnecessary scratches.

The panoramic image system forms a bird's-eye view through splicing.While displaying the panoramic image, it can also display a single view of either side, and accurately locate the position and distance of the obstacle in line with the ruler line. ADAS assists safe driving by controlling the body camera to collect the surrounding area of the vehicle, while the panoramic camera system controls the body camera to collect the surrounding influence of the vehicle for safe parking. The two systems operate independently, throughout the driving process.

The perspective of the panoramic system will dynamically move according to the driving trajectory, providing a 360-degree picture around the vehicle. Generally, cost-effective links such as LVDS or Fast Ethernet are used to deploy 4 to 5 high dynamic range (HDR) 1 million pixel cameras. Video compression is generally used to reduce the required communication bandwidth and reduce wiring requirements (for example, unshielded twisted pair or coaxial cable can be used). Other system requirements include a multi-port LVDS or Ethernet switch, a power supply, an integrated DRAM for quick access to external memory, and an embedded flash memory to reduce system costs.

360 degree panoramic camera

The 360-degree panoramic camera can monitor the area of about 400 square meters without blind spots. It is equipped with a fisheye lens and a camera with a 360-degree panoramic view. One 360-degree panoramic camera can replace multiple ordinary cameras, achieve seamless monitoring, and realize new monitoring applications, which are used in various fields, including prisons, government agencies, banks, social security, public places, cultural places, etc. .
